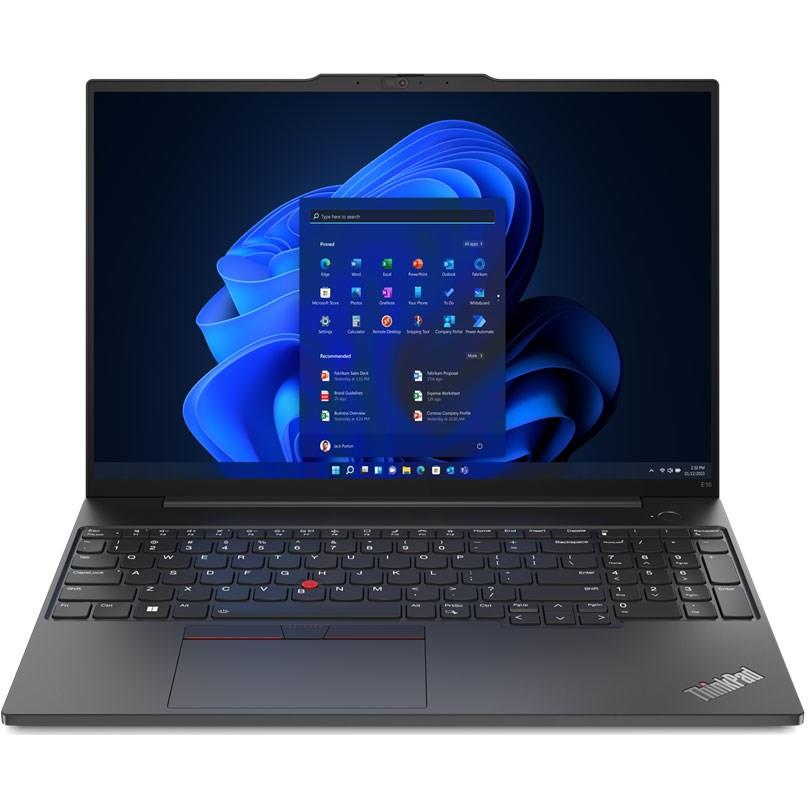

ThinkPad E16 Gen 1 (Intel)
Part Number : 21JN000VGQ
PERFORMANCE
Processor
Intel® Core™ i5-1335U, 10C (2P + 8E) / 12T, P-core 1.3 / 4.6GHz, E-core 0.9 / 3.4GHz, 12MB
Graphics
Integrated Intel® Iris® Xe Graphics Functions as UHD Graphics
Chipset
Intel® SoC Platform
Memory
8GB Soldered DDR4-3200
Memory Slots
One memory soldered to systemboard, one DDR4 SO-DIMM slot, dual-channel capable
Max Memory
Up to 40GB (8GB soldered + 32GB SO-DIMM) DDR4-3200
Storage
512GB SSD M.2 2242 PCIe® 4.0x4 NVMe® Opal 2.0
Storage Support
Up to two drives, 2x M.2 SSD • M.2 2242 SSD up to 1TB
Storage Slot
Two M.2 slots • One M.2 2242 PCIe® 3.0 x4 slot • One M.2 2242 PCIe 4.0 x4 slot
Card Reader
No card reader
Optical
None
Audio Chip
High Definition (HD) Audio, Synaptic® CX11880 codec
Speakers
Stereo speakers, 2W x2, Dolby® Atmos®
Camera
FHD 1080p with Privacy Shutter
Microphone
2x, Array
Battery
Integrated 47Wh
Power Adapter
65W USB-C® (3-pin)
DESIGN
Display
16" WUXGA (1920x1200) IPS 300nits Anti-glare, 45% NTSC
Touchscreen
None
Keyboard
Backlit, English (EU)
Case Color
Graphite Black
Case Material
Aluminium (Top), Aluminium (Bottom)
Dimensions (WxDxH)
Starting at 356.1 x 247.7 x 19.85 mm (14.02 x 9.75 x 0.78 inches)
Weight
Starting at 1.81 kg (3.99 lbs)
SOFTWARE
Operating System
None
Bundled Software
None
CONNECTIVITY
Ethernet
100/1000M (RJ-45)
WLAN + Bluetooth
Wi-Fi® 6, 11ax 2x2 + BT5.1
WWAN
None
SIM Card
None
NFC
None
Standard Ports
1x Ethernet (RJ-45)
1x HDMI® 2.1, up to 4K/60Hz
1x Headphone / microphone combo jack (3.5mm)
1x Thunderbolt™ 4 / USB4® 40Gbps (support data transfer, Power Delivery 3.0 and DisplayPort™ 1.4)
1x USB 2.0
1x USB 3.2 Gen 1 (Always On)
1x USB-C® 3.2 Gen 2 (support data transfer, Power Delivery 3.0 and DisplayPort™ 1.4)
Docking
Various docking solutions supported via Thunderbolt™ or USB-C®. For more compatible docking solutions, please visit Docking for ThinkPad® E16 Gen 1 (Intel®)
Monitor Cable
None
SECURITY & PRIVACY
Smart Card Reader
None
Security Chip
Discrete TPM 2.0 Enabled
Fingerprint Reader
Touch Style, Integrated in Power Button
Physical Locks
Kensington® Nano Security Slot™, 2.5 x 6 mm
Other Security
Camera privacy shutter
MANAGEABILITY
System Management
Non-vPro®
Included Upgrade
None
ACCESSORIES
Bundled Accessories
Lenovo® 15.6" Laptop Casual Toploader
CERTIFICATIONS
Green Certifications
ErP Lot 26
ErP Lot 6
FSC certified package
RoHS compliant
TCO Certified 9.0
Other Certifications
TÜV Rheinland® Low Blue Light (Software Solution)
Mil-Spec Test
MIL-STD-810H military test passed
